Mark-IV | Joint Clean-out Saw

Name: Mark-IV | Joint Clean-out Saw
SKU: SX13800
Availability: InStock

$2,042.50

Part Number: SX13800

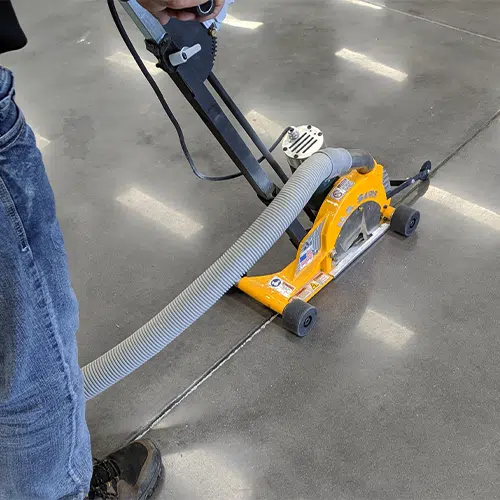

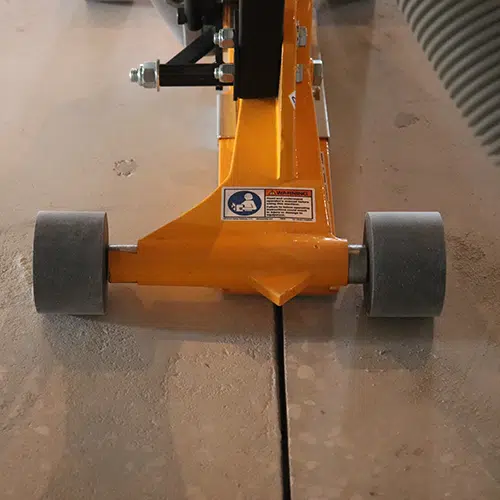

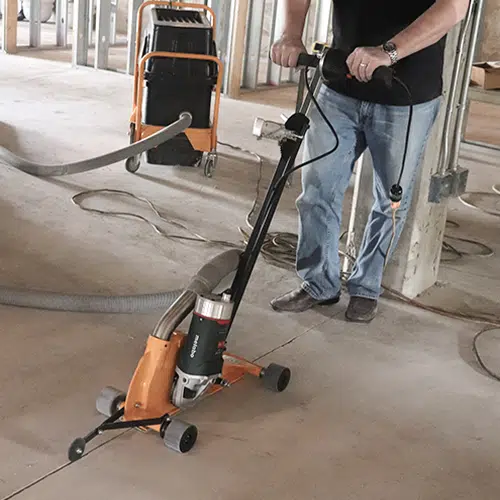

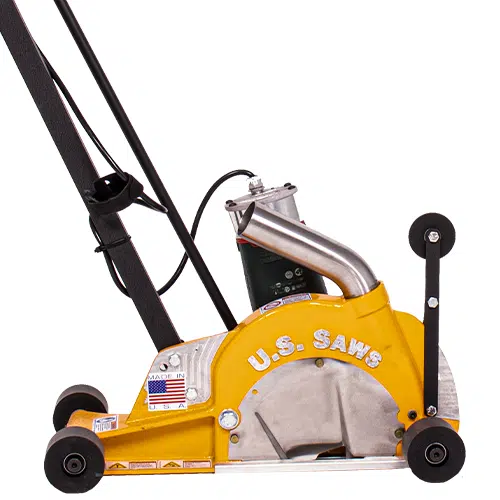

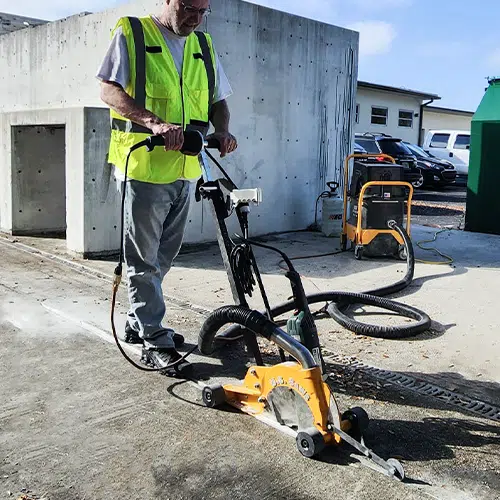

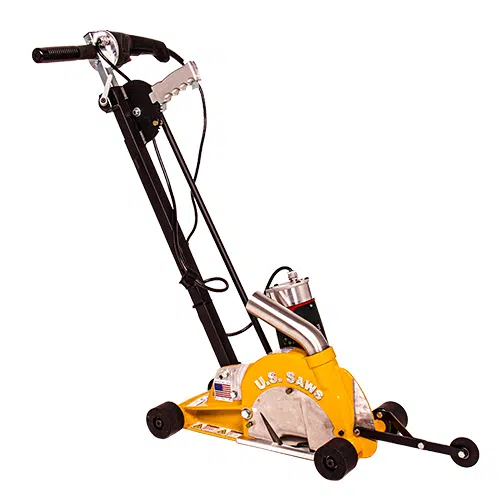

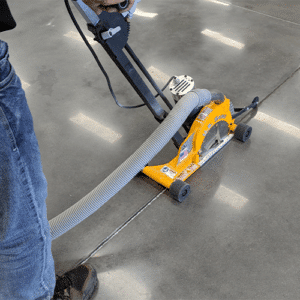

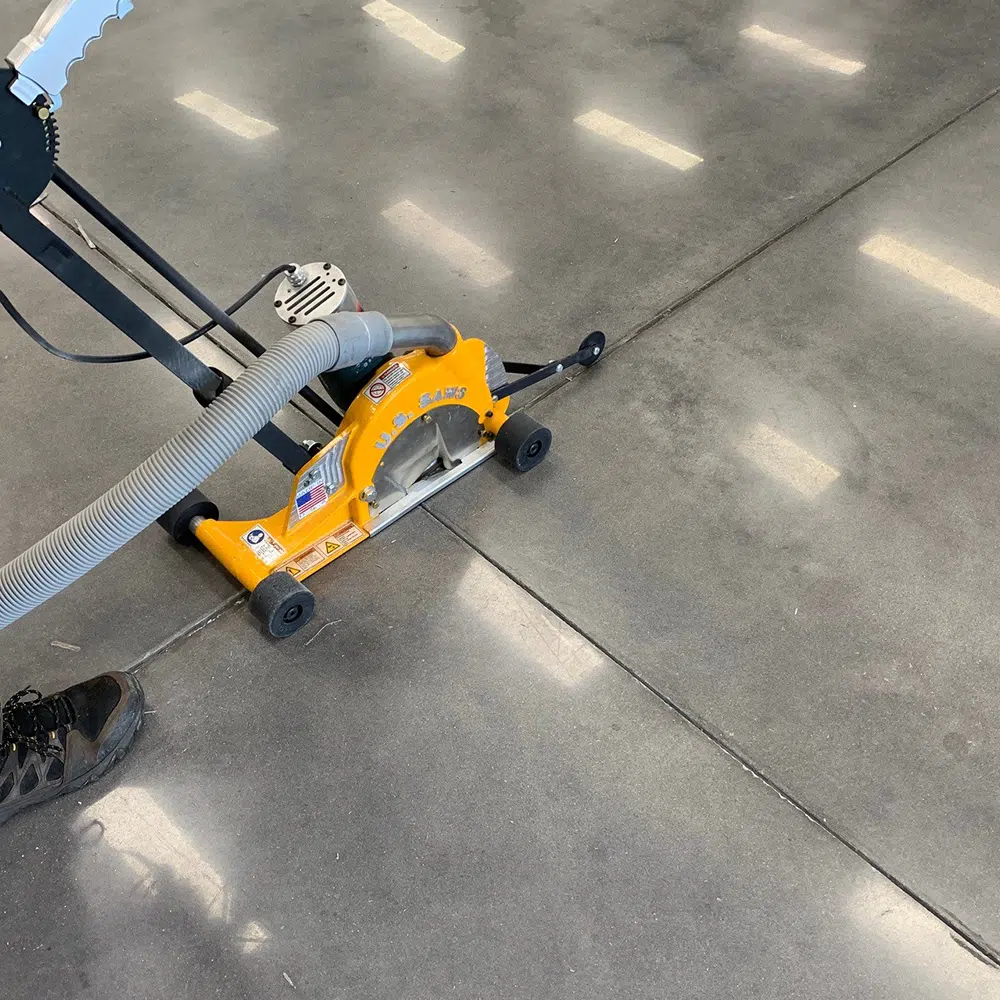

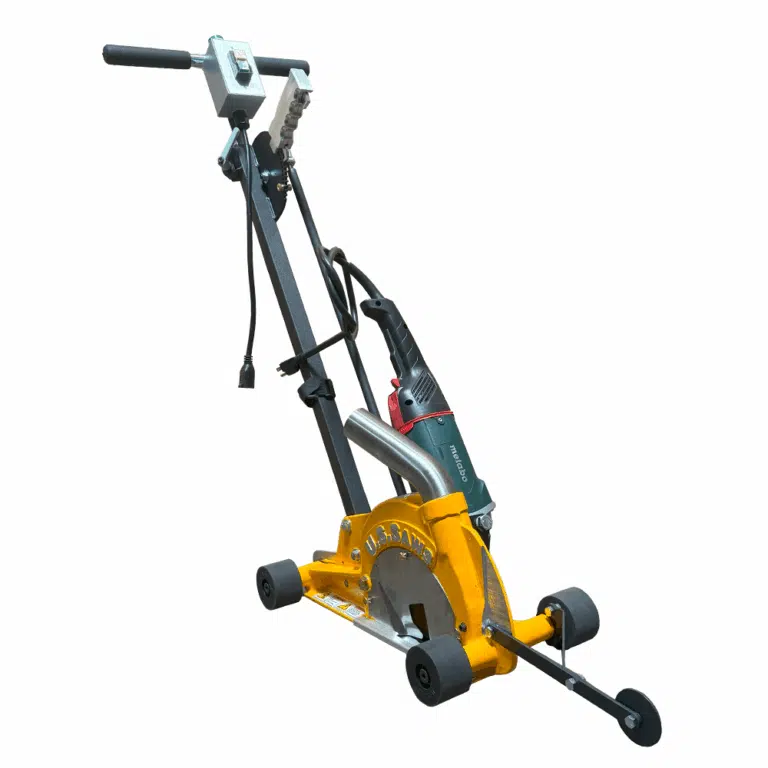

The Mark-IV is a high performance; high precision saw designed to clean out control joints, remove the old joint filler, and make straight, accurate cuts in concrete up to 2″ deep. A specially designed blade guard allows the operator to see the blade yet still covers 98% of it for excellent dust control and a high degree of accuracy. The handle and frame are designed for more stability and adjustable height that rotates to get closer to walls or racks.

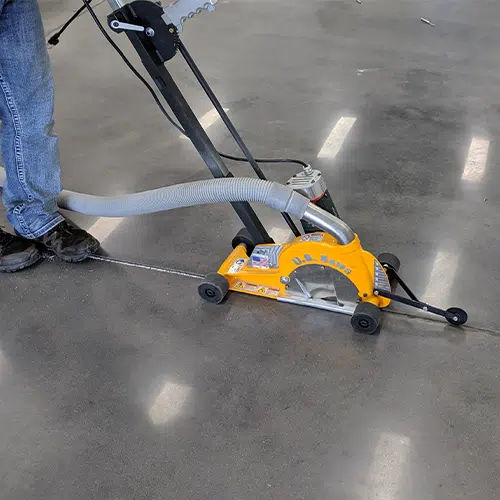

When the Mark-IV is paired with the Tiger Tooth Blades, this machine will remove polyurea joint filler

- + Add to Cart

8" x .125" x 7/8" Tiger Tooth Blade

$151.00

- + Add to Cart

8" x .250" x 7/8" Concrete Blade

$128.80

- + Add to Cart

Ultra Vac 1250 | Dust Collector

$3273.50

- + Add to Cart

Mark-IV Dust Buggy

Part Number: SX13800

NEW FEATURES

For 9 years we’ve offered the Mark-3 saw which was a vast improvement over any small electric joint saw ever made by us or anyone else. We’ve now transitioned to the Mark-4 which adds even more value. A new motor bracket maked grinder changes faster and easier. The new blade guard allows even more visibility of the blade, and the new control box features a magnetic switch that eleminates accidental re-starts and an all in one voltage and amperage gauge to allow the operator to to push the limits without burning out the grinder.

The aluminum alloy chassis has a lifetime warranty and is powered by a 120V 15 amp Metabo 24-230 (6,600 RPM).

The Mark-IV Dust Buggy comes with an 8″ x .125 x 7/8-5/8 Supreme Concrete Blade and can accommodate 7″ or 8″ blades up to .375″ wide. It features a fully adjustable blade depth and includes a depth lock to prevent overcutting.

Available in the UK through our authorized distributor:
PWM (Sales) Ltd — supplier of U.S. Saws Core EZ Systems & Joint Saws in the UK.

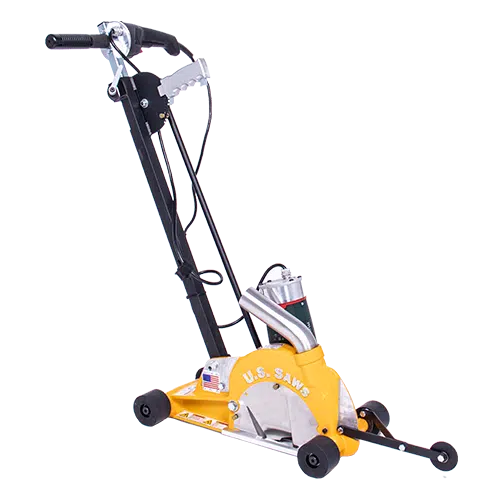

Mark-III Dust Buggy

Weight: 30 lbs
Dimensions: 10 × 30 × 15 in

Electric, portable joint clean-out saw ideal for joint clean-out, joint filler removal, decorative concrete, and concrete cutting
Adjustable blade depth with up to 2 cutting depth (with 8 blade)
Powered by a Metabo 15 Amp W24-230 (6,600 RPM)
Up-cut blade rotation cleans debris out of the joint
Solid aluminum chassis provides a durable and stable machine to allow for straight, accurate cuts
The vacuum port allows for dust-free operation
Made in the U.S.A.

Mark-III Dust Buggy Spec Sheet

Mark-III Dust Buggy Owners Manual

Objective Data Testing for Concrete Surface Grinding

1. How deep can this saw cut?

2″ Maximum depth with an 8″ Blade. 1.5″ with a 7″ blade. The depth will be reduced as the blade wears.

2. Can this saw remove polyurea?

Yes, using the Tigertooth blade is recommended.

3. What kind of production can I expect?

New construction joint cleanout: 50 ft a minute.

Polyurea removal: 3-6 feet a minute @ 1/2″ depth, .125 joint width depending on several variables, faster if your only going 1/4″ deep.

4. Can this be used as an early entry saw?

Yes and no, it works fine if you cut the day after the slab is poured but it is not recommended for cutting freshly poured concrete.

5. What kind of vacuum do I need?

OSHA states you need 25 CFM (cubic feet per minute) of vacuum for every 1″ in diameter of the blade, so a vacuum that has a minimum of 200 CFM is needed. A “Big Box Store” wet/dry vac is not going to be sufficient.

6. What kind of blades can I use?

Any 7″ or 8″ blade that has a 7/8″ arbor hole and is rated for at least 7,640 rpm.
