Cyclone Dust Collection Pre-Separator

Cyclone Pre-Separator Dust Collection System

Part Number: SX24445

The Cyclone Pre-Separator is a low-cost way to turn your industrial shop-vac into an effective industrial dust collector. It separates 99% of the concrete dust before it reaches the shop-vac.

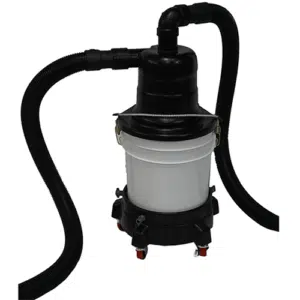

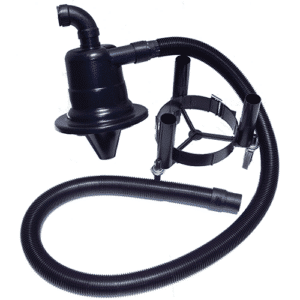

Package includes: separator, 8′ hose, and roller base

*Bucket NOT included

Compatible with 5″ or 7″ Hand-Held Grinder

Meets OSHA Table 1: Section 11 & 12 (XI) Handheld grinders for mortar removal (i.e., tuckpointing). (XII) Handheld grinders for uses other than mortar removal.

Dust collector must provide 25 cubic feet per minute (cfm) or greater of airflow per inch of wheel diameter and have a filter with 99% or greater efficiency and a cyclonic pre-separator or filter cleaning mechanism.

Weight: 19 lbs

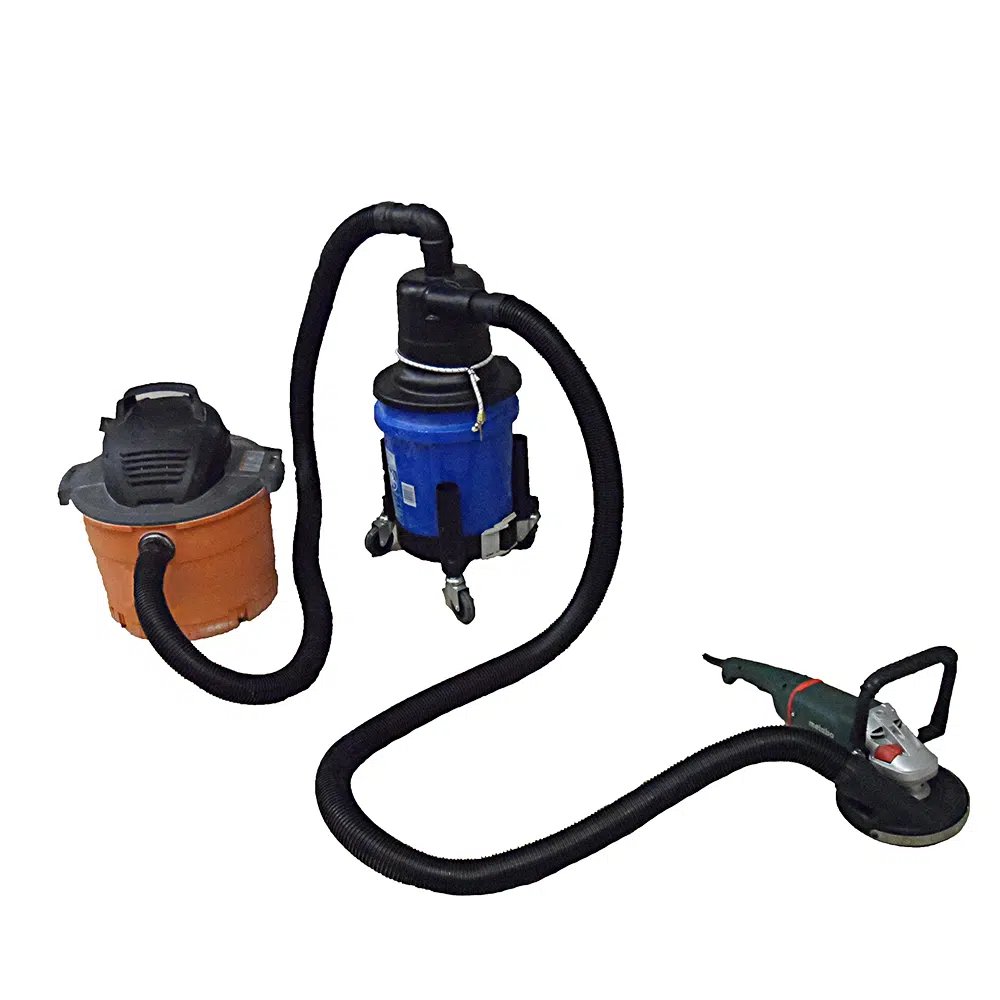

Low cost way to turn your Shop-Vac into an effective, industrial dust collector
Removes most of the concrete dust that passes from your grinder or saws dust shroud before it reaches your vacuums filter (filter must be 99% efficient to be OSHA compliant)
Attaches to any shop-type dust collection system & extends its motors life
Reduces downtime changing filters
For use with 1 hand-held grinder. 5 or 7 based on CFM of vacuum unit.
Debris falls into pail (any 5-gallon bucket works) for quick & easy disposal
Unit includes separator, 8 hose, roller base
2 models offered–with or without bags

Cyclone Separator Spec Sheet
